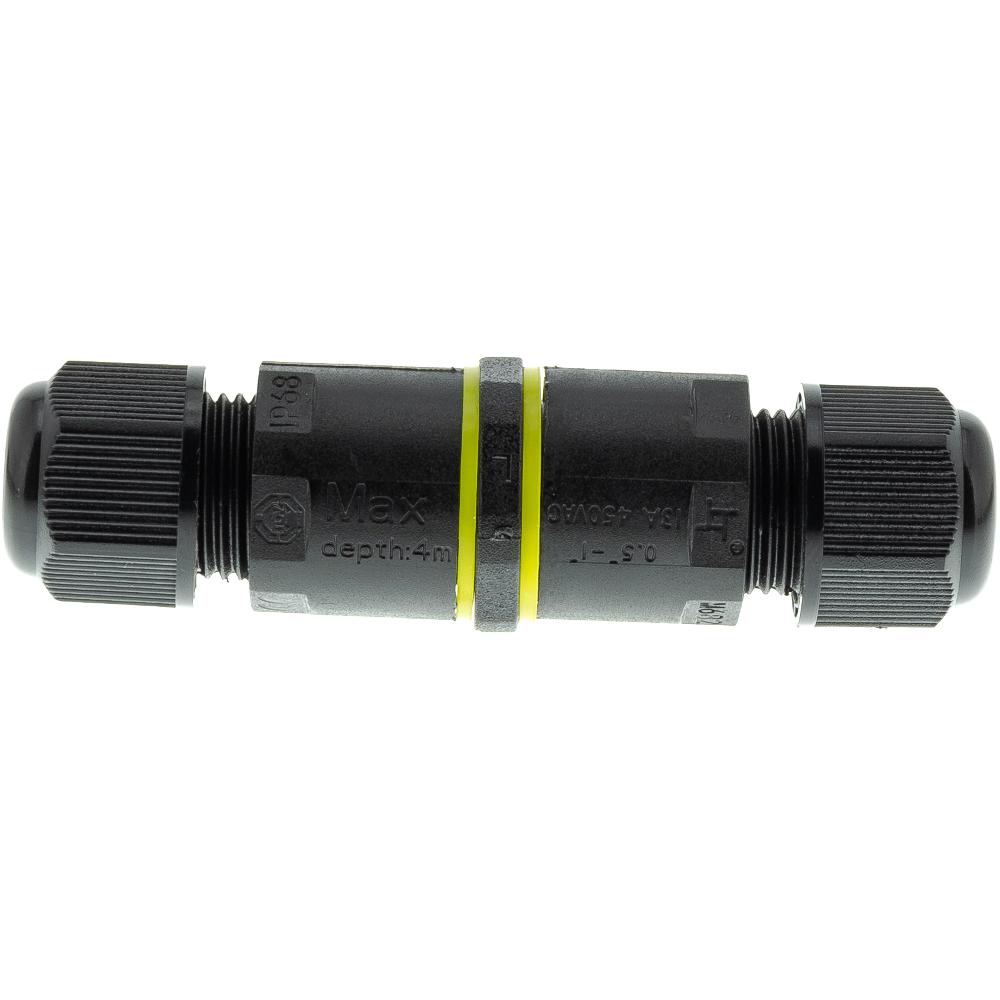

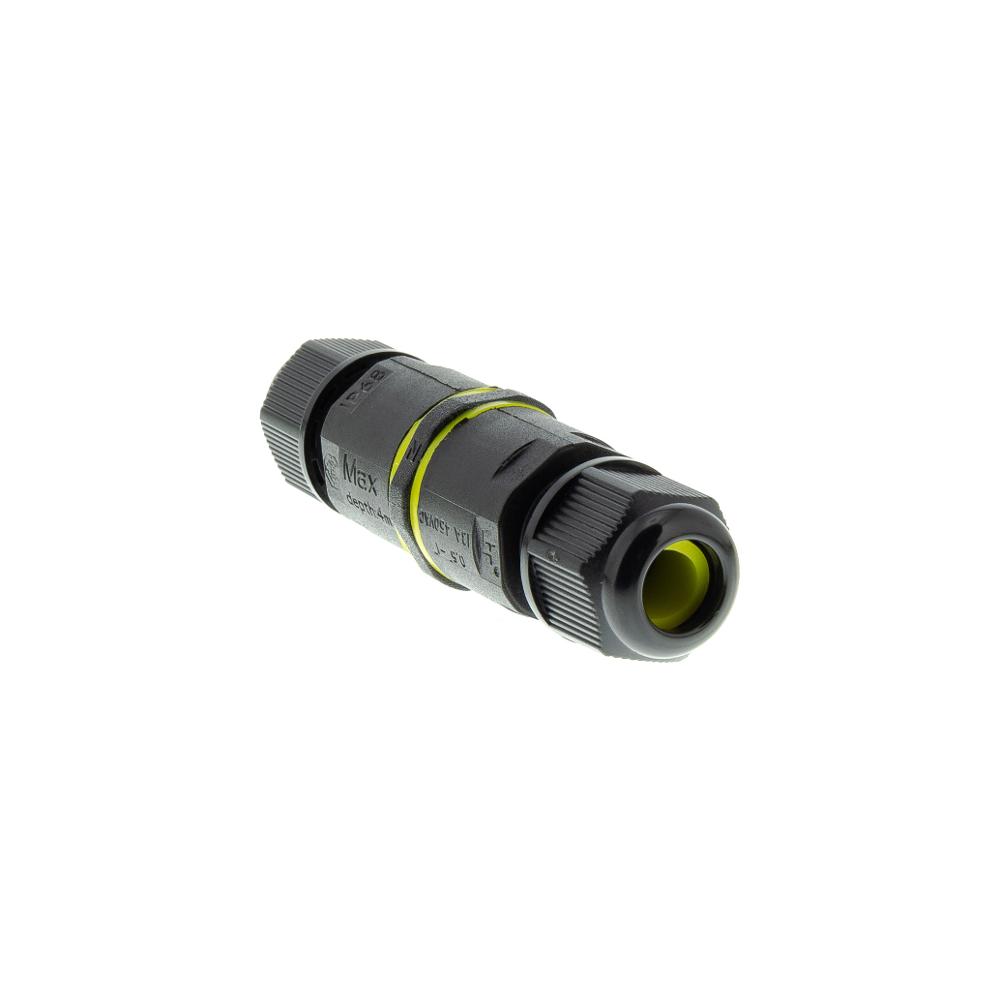

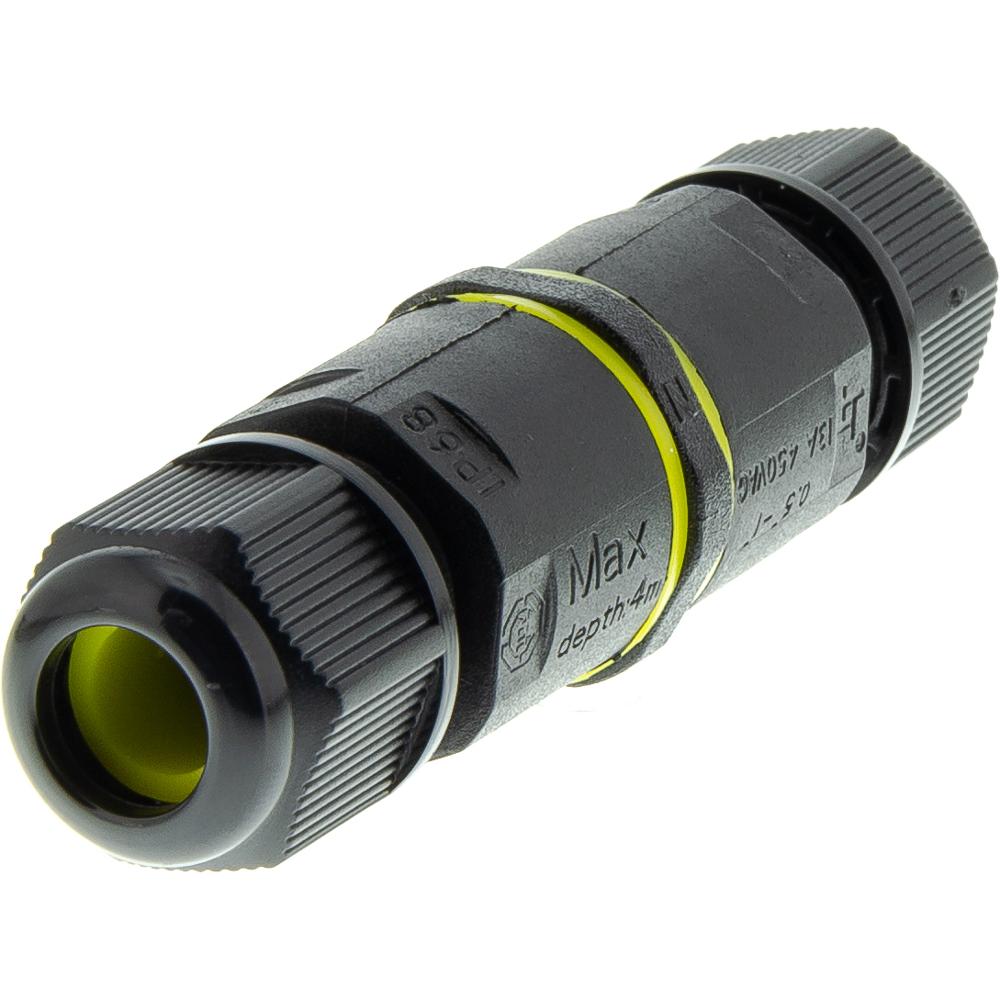

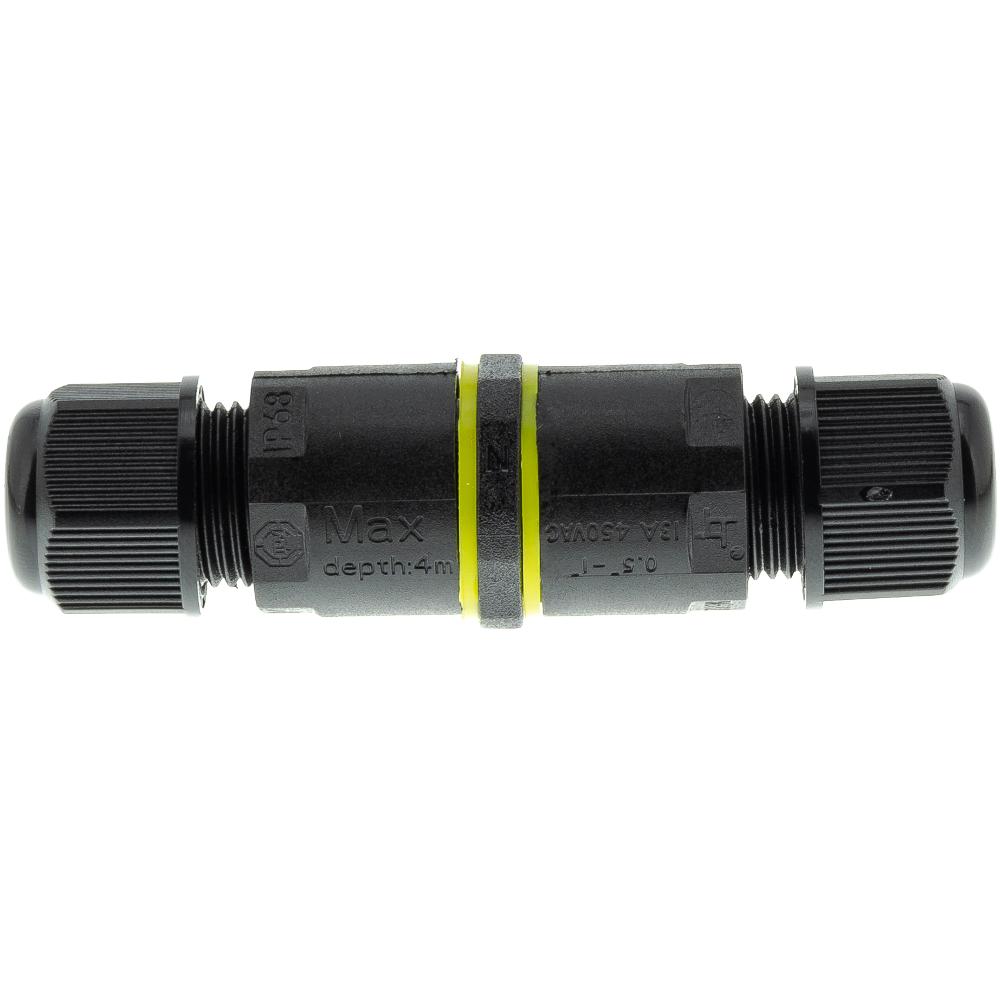

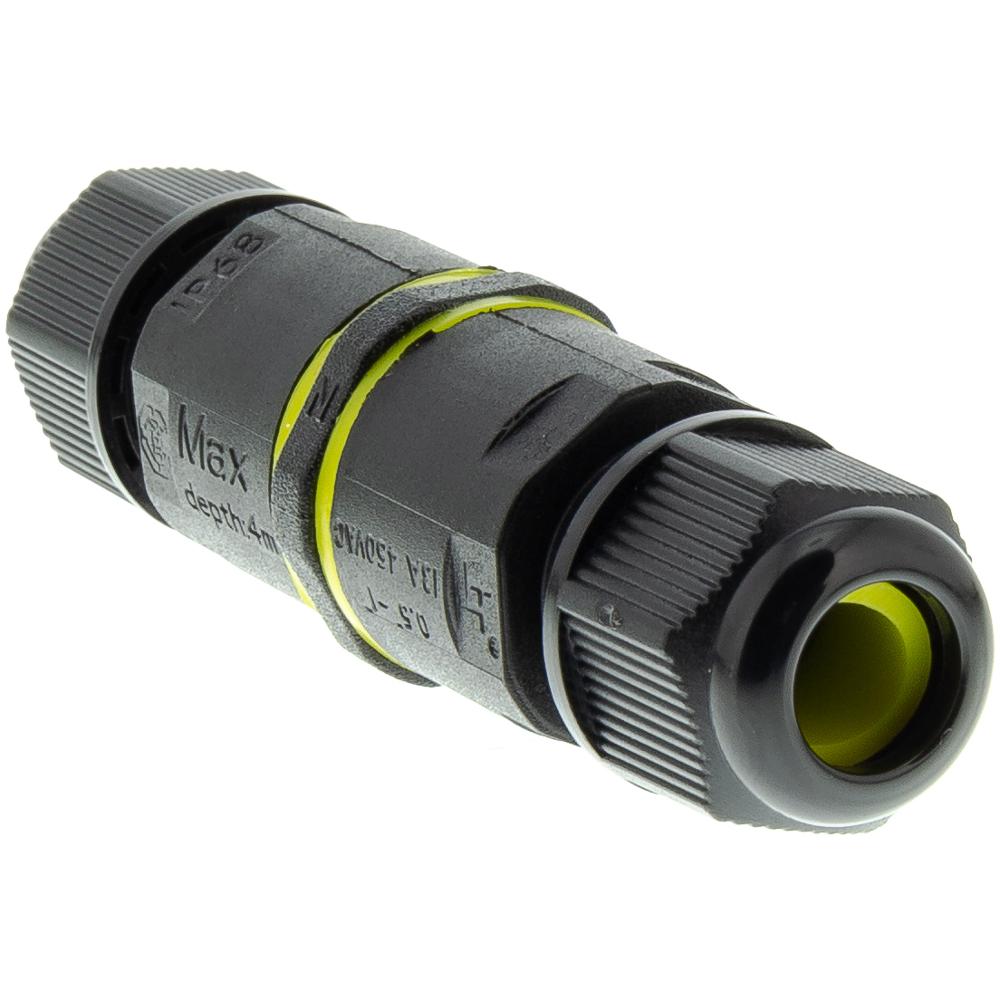

Cable joints for three-core wires

Torn or damaged cables, or the sole need to connect two different wires can make your work annoying in a second. That’s why it is always good to have a helper at hand. A cable joint will get you out of trouble. You can use it to easily and quickly connect wires without soldering. Not only does it help with damaged cables, you can also use it for extending cables or connecting our RETLUX reflectors. Water resistance allows for both indoor and outdoor use.

Description

Cable connector for three-core wires
Screw terminals
Conductor cross section: up to 2.5mm2
Cable diameter: 4-8mm
Operating temperature: -15 ° C to 60 ° C
Material: Polyamide PA
Seal: Silicone
Contacts: Nickel-plated brass

Technical specs

Use
Outdoor and indoor
Power
230 V
Protection against water and dust
The degree of protection (IP) indicates the resistance of electrical equipment to the ingress of foreign bodies and the ingress of liquids, especially water. It is expressed in the so-called IP code, which consists of the characters "IP" followed by two digits: the first digit indicates protection against dangerous contact and against the ingression of foreign objects, the second digit indicates the degree of protection against water ingression.
IP 65
